Technical Overview
Installation typology
Built-in
Width of appliance
10 cm
Type of extraction
air extraction / air recirculation
Gaggenau Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Specifications
Ventilation element integrated in the worktop
Highly efficient ventilation system at the cooktop
Compact ducting in connection with flat rectangular pipes AD 8..
Minimal planning and easy installation for air recirculation
Power levels depend on the remote fan unit.
Ventilation grille, washable.
Metal grease filter with grease drip tray, dishwasher-safe.
No duct connecting piece included.

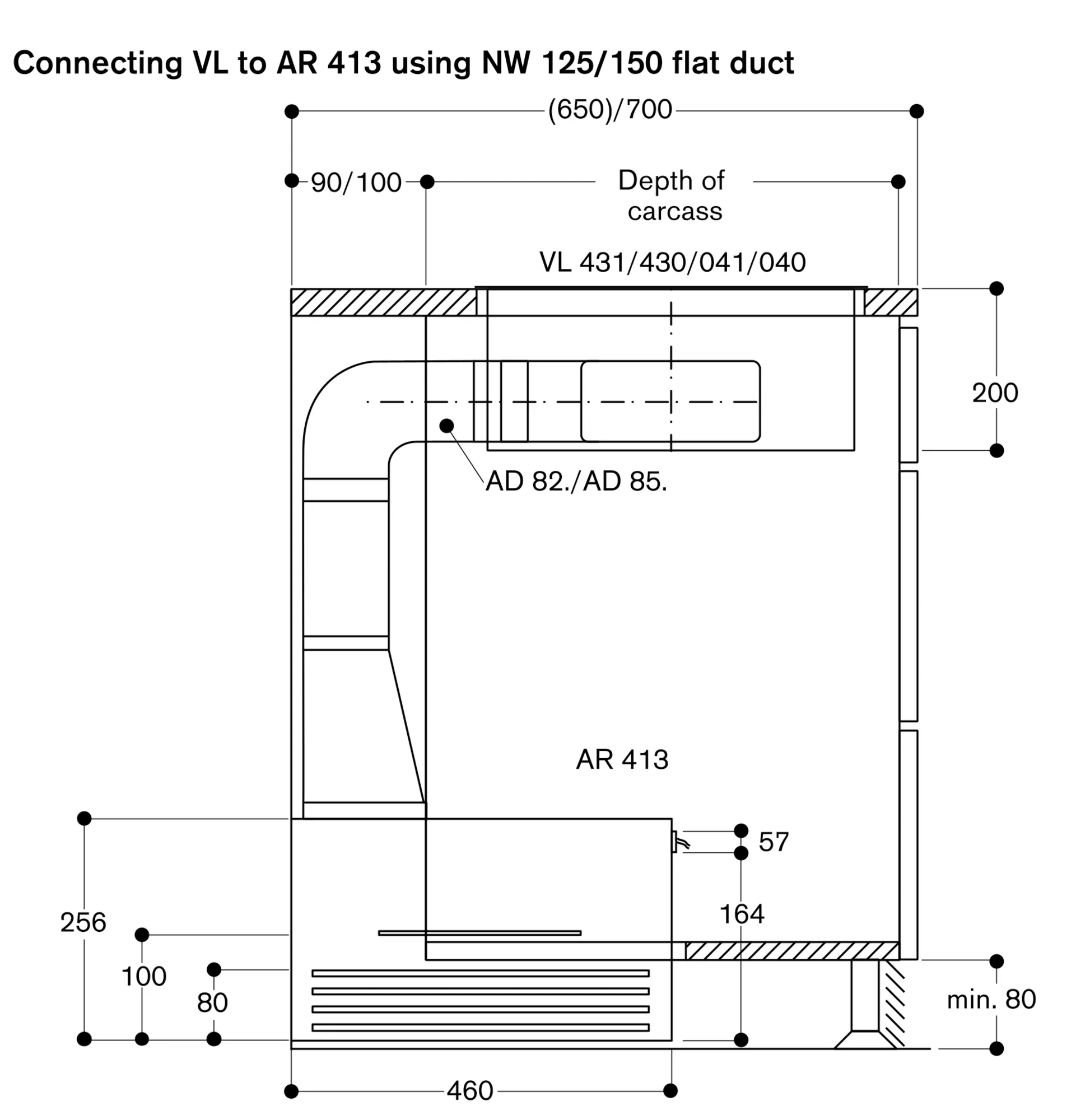

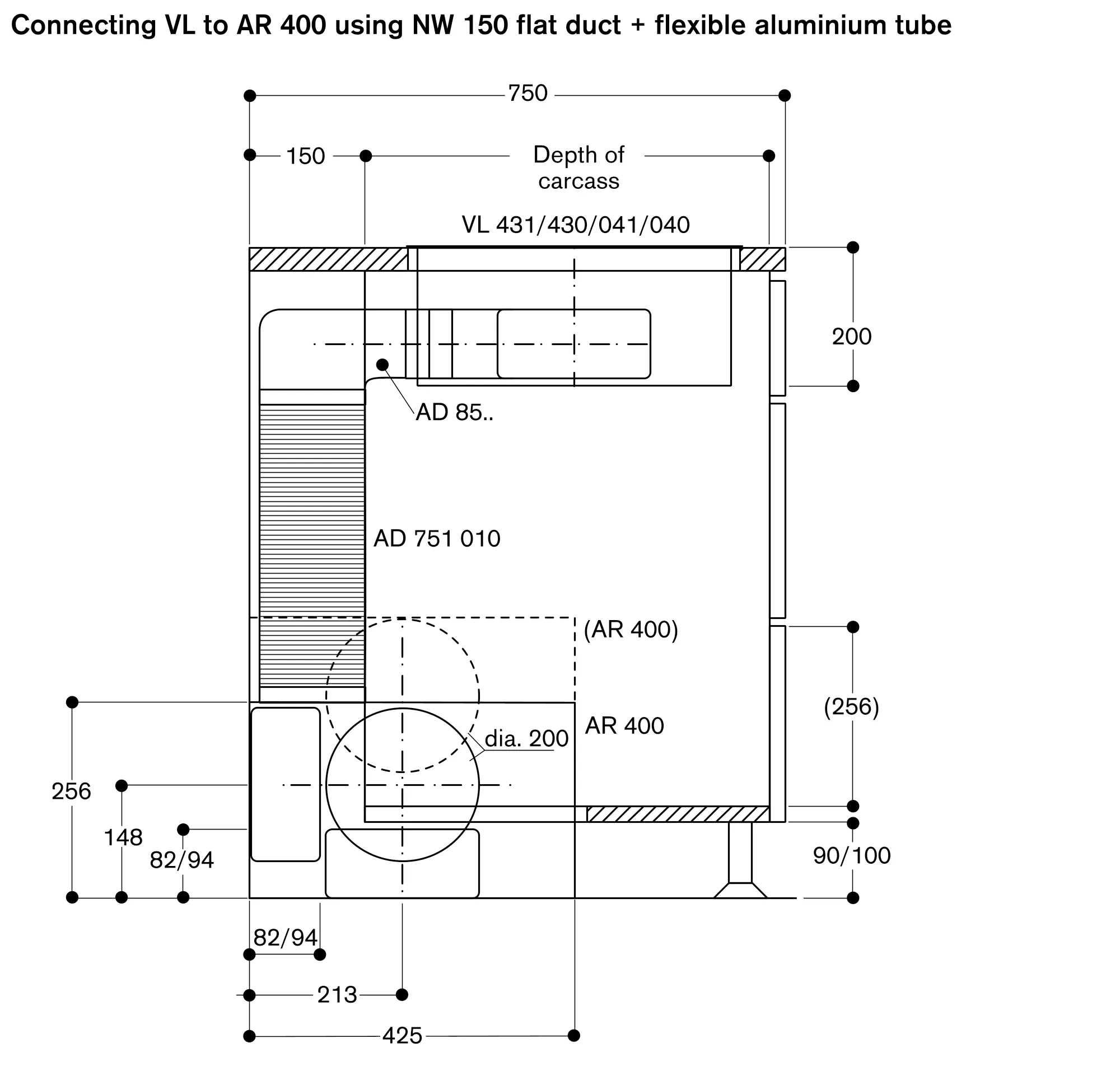

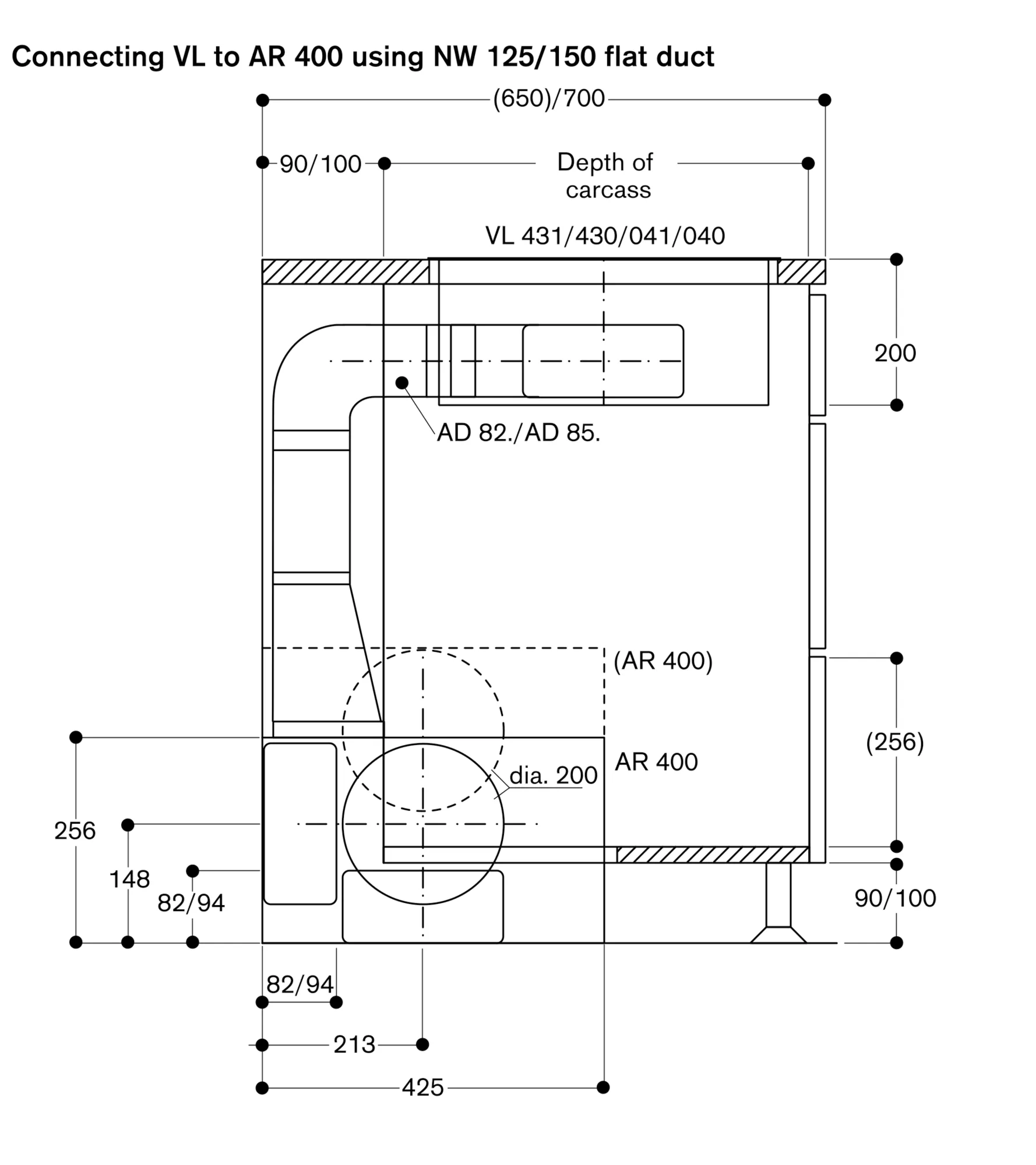

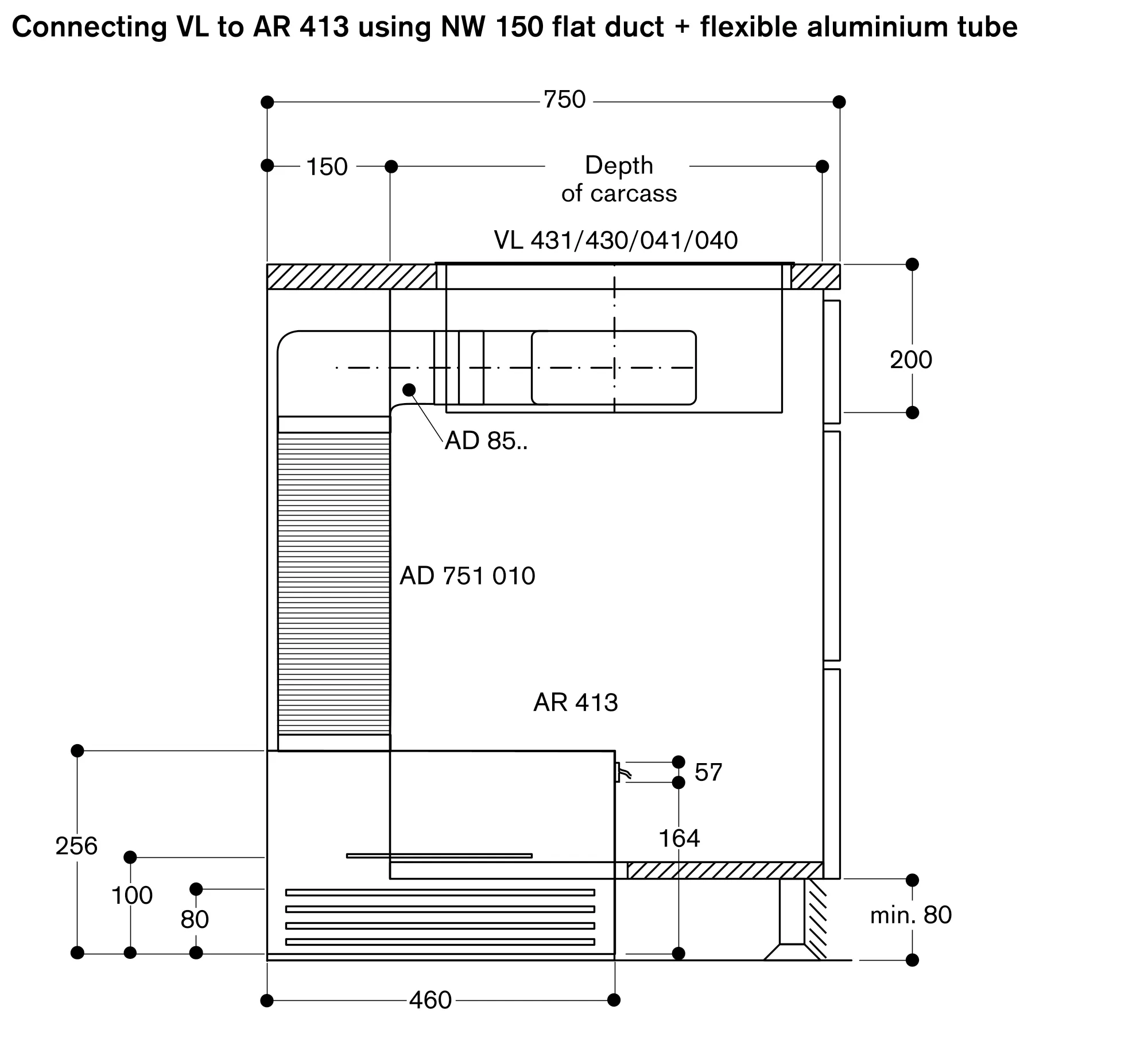

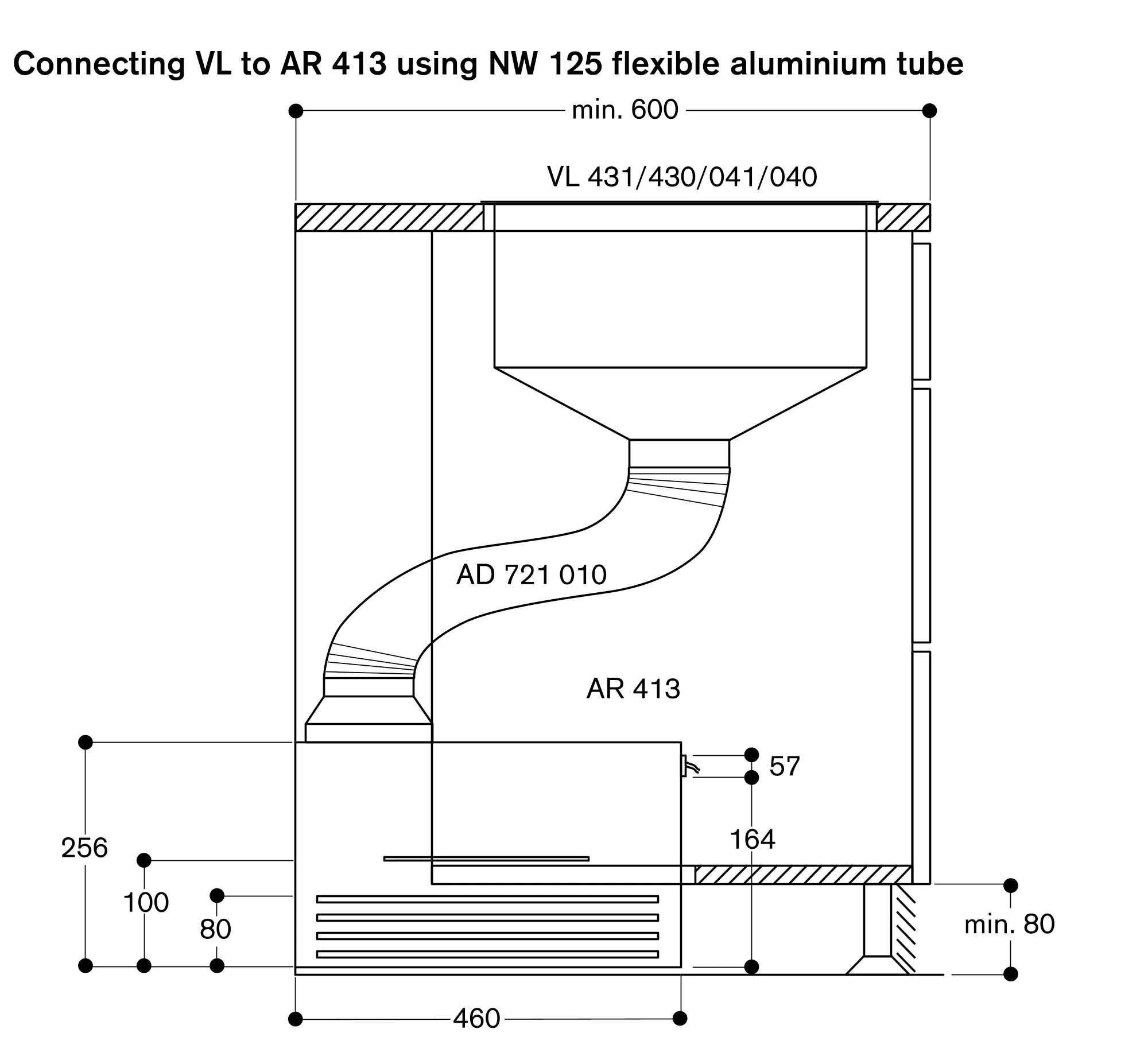

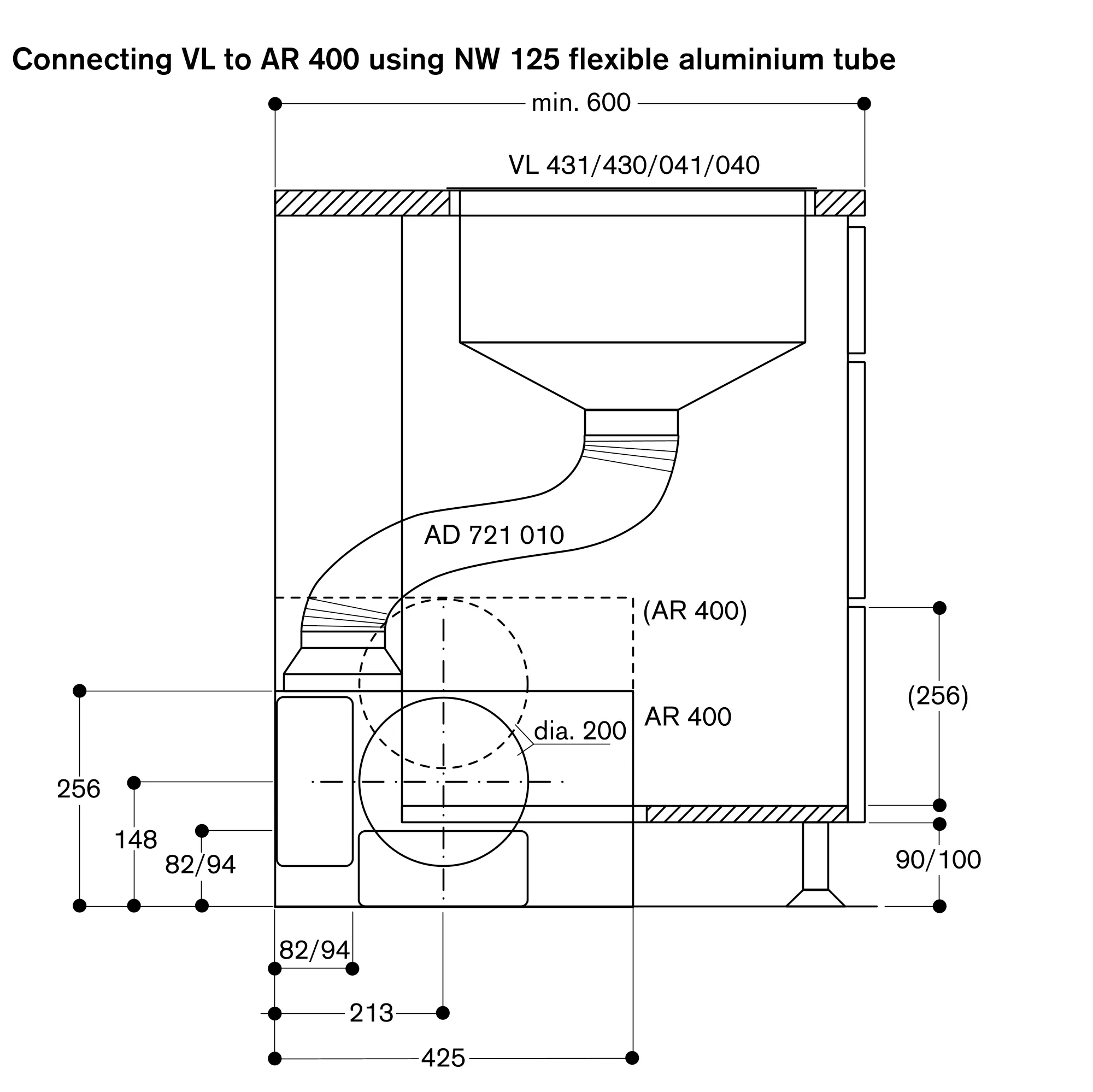

Air extraction in combination with remote fan unit AR 403 121 or air recirculation mode with AR 413 121.
Ensure to have recommended configurations of downdraft ventilations and remote fan units and the needed ducting elements.
Maximum cooktop width between 2 VL: 60 cm (exception: VI/VE 270).

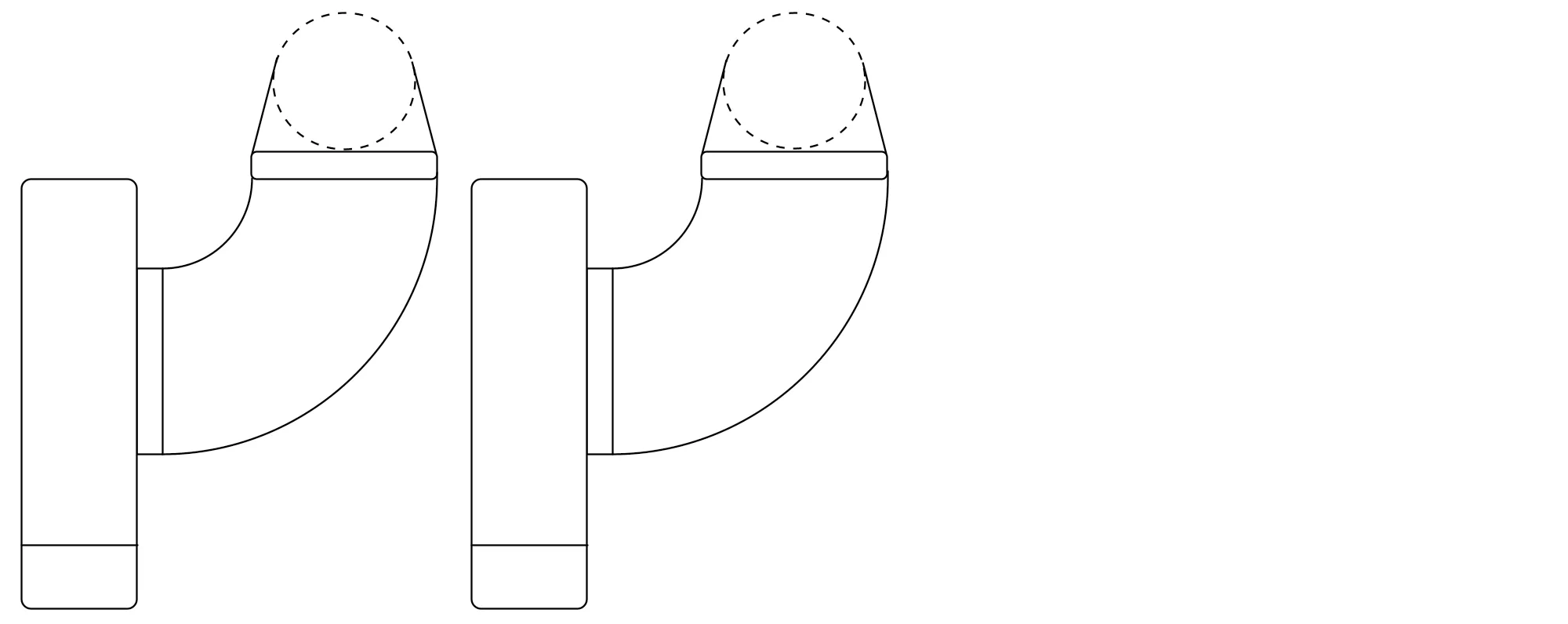

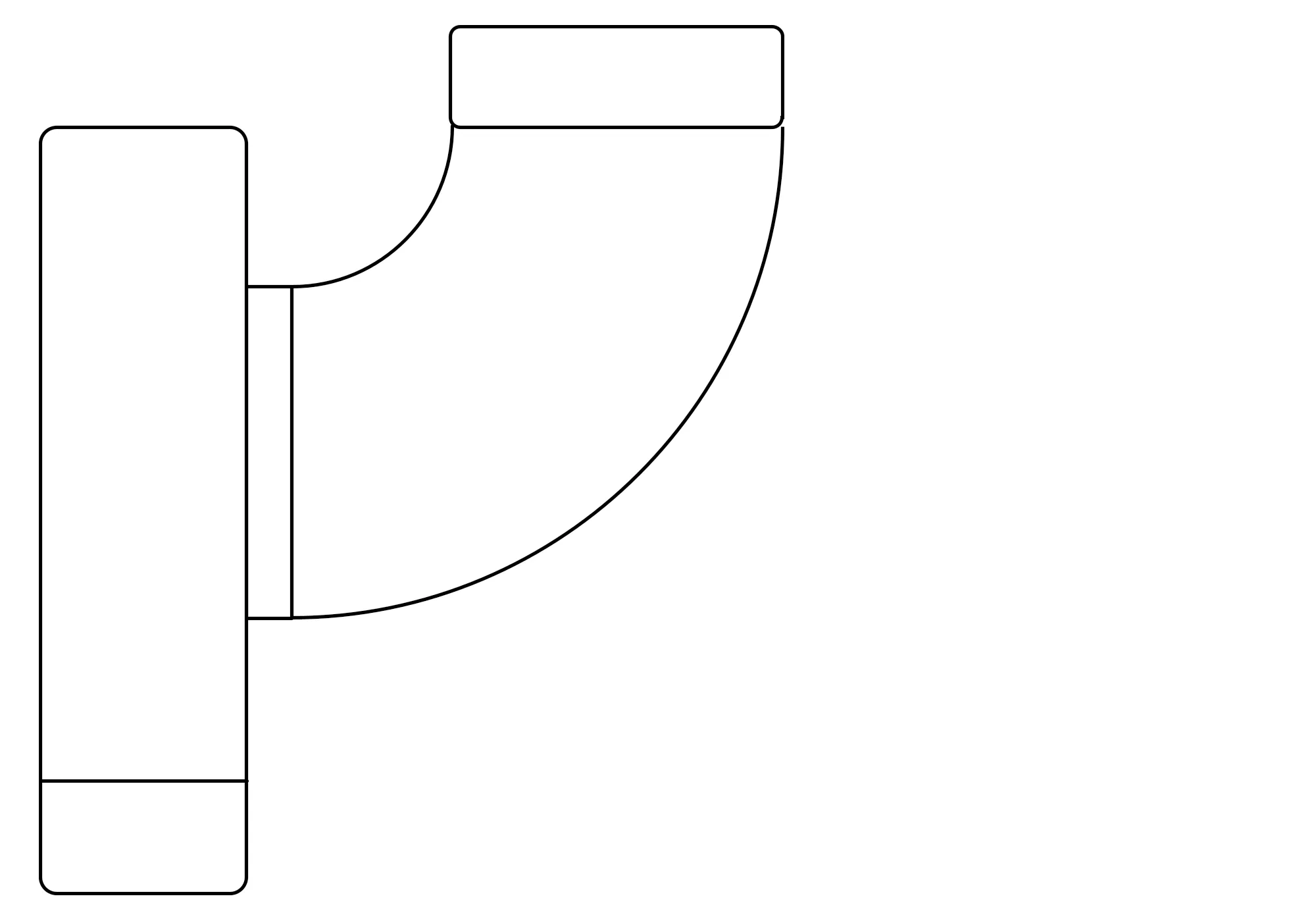

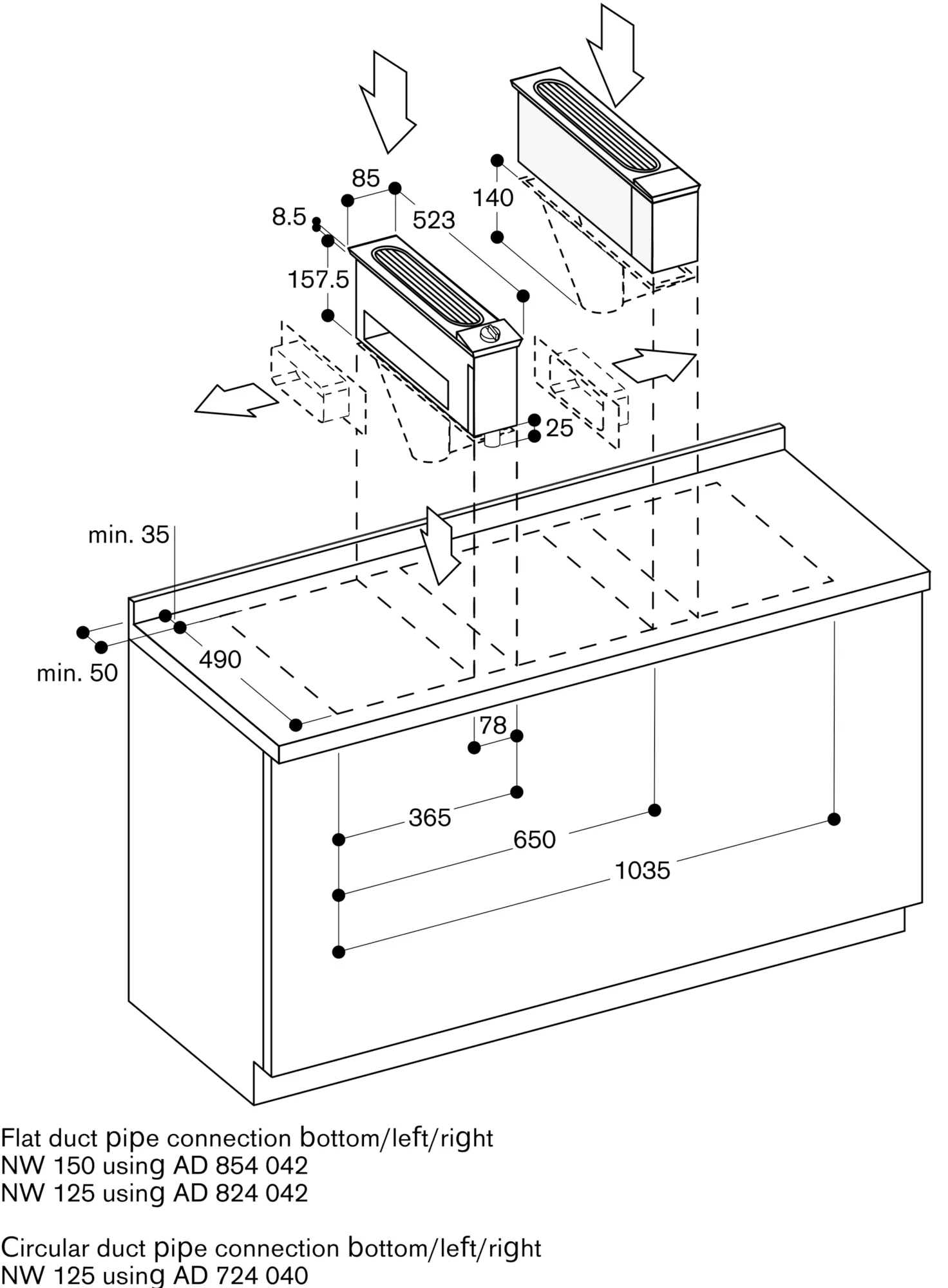

Duct connection piece downwards or sidewards: DN 125 cylindric included. Optional DN 125/150 flat rectangular duct with connection piece AD 854/824 042 (special accessory).

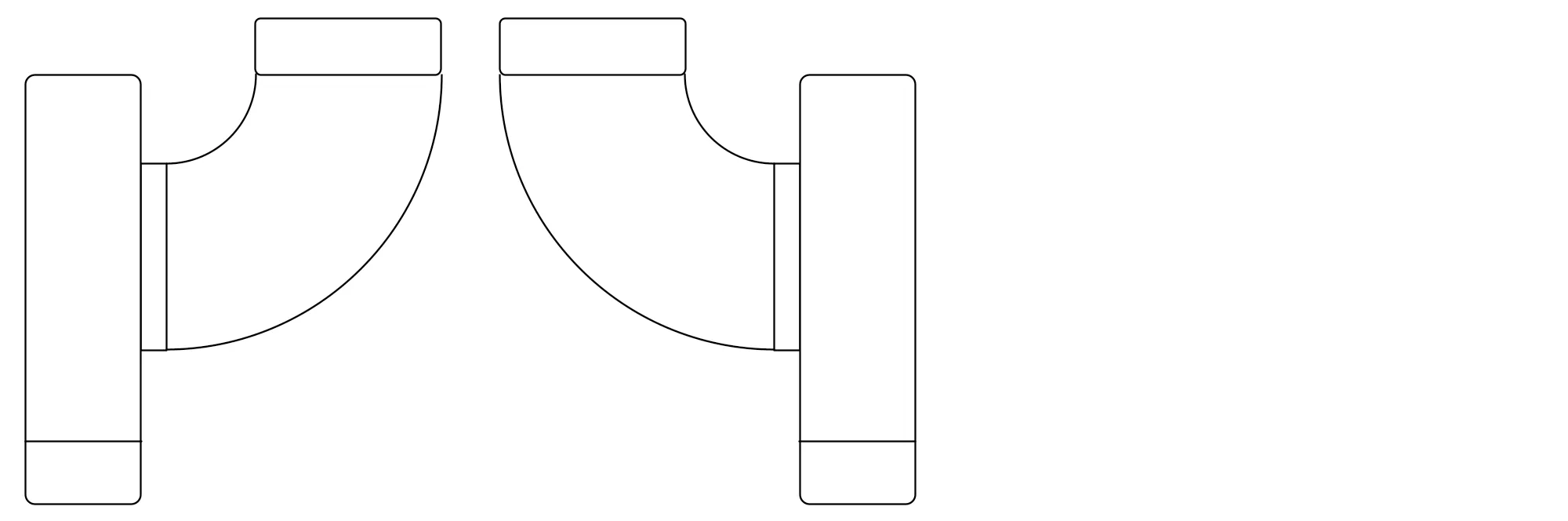

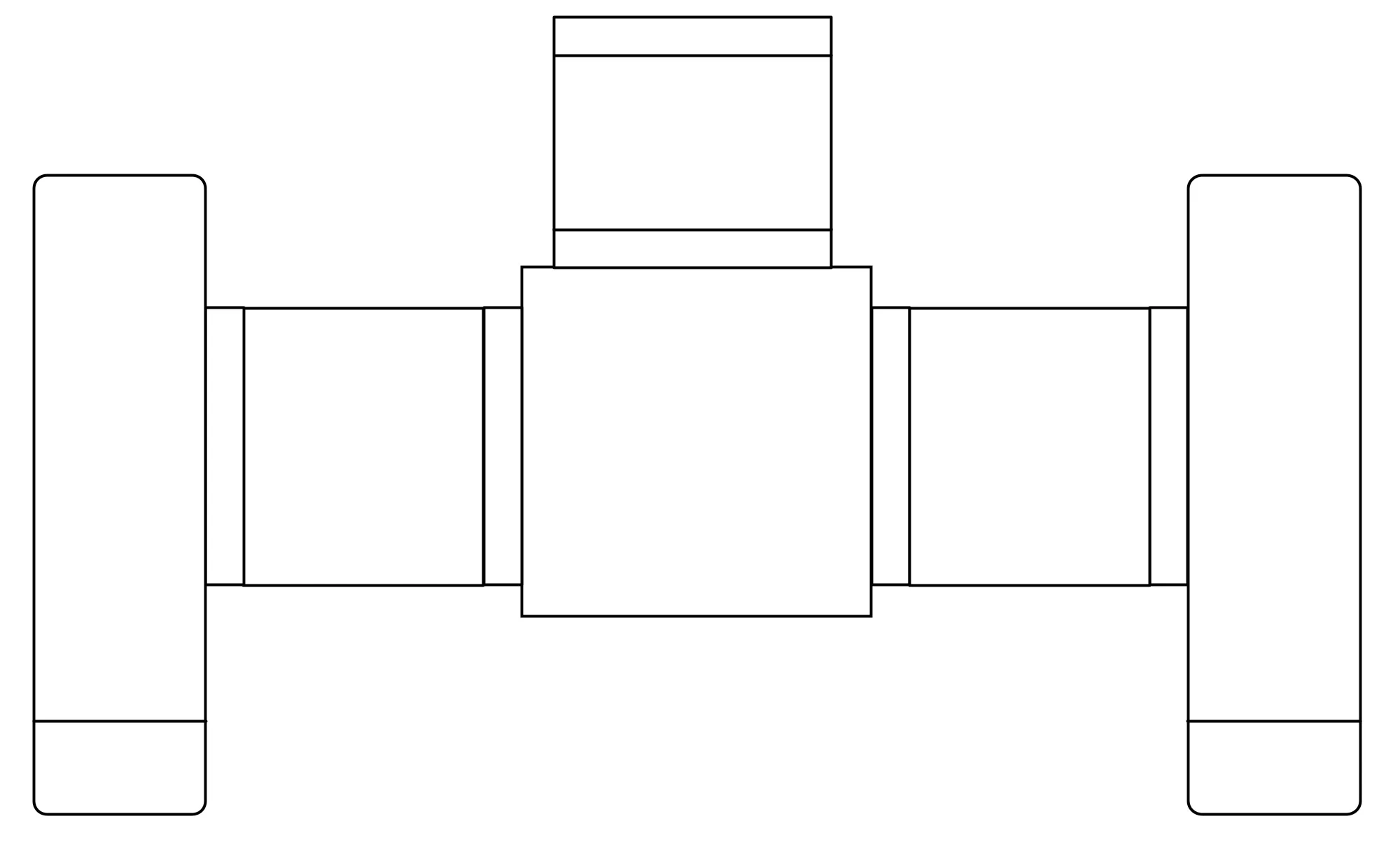

Connection of a pair of VL with ducting 2x DN 125 cylindrical or 2x DN 125/150 rectangular direct at remote fan AR 4.. . For leading through the floor with DN 150 cylindrical use Y-joint AD 754 044.
When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
