1 / 6
Specifications
Can be combined with the cooktops of the Vario 200 series to a harmonic unity
Generous control panel for comfortable and secure operation
Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
Total output up to 5 KW
1 three-ring wok burner (250 W – 5000 W), suitable for pots up to max. ø 32 cm.
One-handed operation.
Electric ignition.
Cast iron pan support.
Brass burner rings.
Thermoelectric safety pilot.

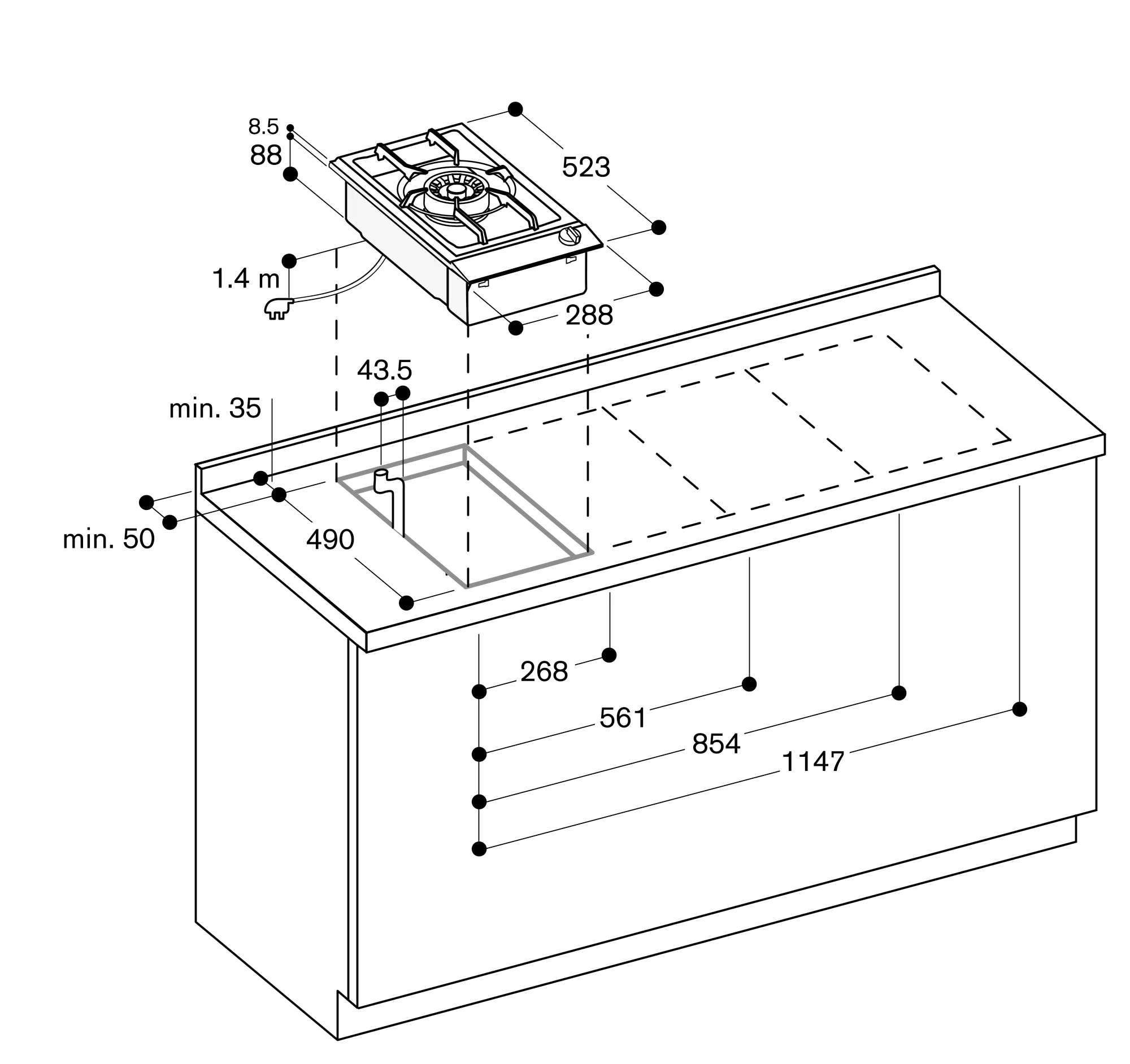

Maximum drawer depth 42 cm.
Appliance can be snapped into the worktop from above.
A minimum clearance of at least 150 mm from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation fitted.
With a total connected load of more than 11 kW local regulations concerning room ventilation, room size and combination of extraction or recirculation hoods must be observed. Minimum clearance between gas cooktop(s) with more than 11 kW and ventilation hood 70 cm.
Appliance weight: approx. 9.
Total connected load gas 5.0 KW.
Total connected load electric 1.0 W.
Connecting cable 1.4 m with plug.
