OvensAccessoriesAD750054

Air duct part βŒ€ 150 mm
AD750054 β€’ 17005193

1 / 0
Photo Nr. 1 of the product AD750054
Photo Nr. 2 of the product AD750054
Photo Nr. 3 of the product AD750054

Air duct part βŒ€ 150 mm
AD750054 β€’ 17005193

Air duct part βŒ€ 150 mm
AD750054 β€’ 17005193

Check appliance compatibility

How to find your E-Number
The model number (E-number) is located on the type plate of your device.

Specifications

Optimal temperature insulation.
Hermetically sealed by an optimized built-in heat retention system.
Flat stainless steel cover with minimal effect to the aesthetics of the building exterior facade.
Weatherproof stainless steel louvres.
3-times insulating Backflow system.
Magnetic opening and closing.
Defined opening pressure (65 Pa) prevents rattling.
Full opening even at low flow rates.
Conform to blower-door test.
For connection of round pipe DN 150 or flat pipe DN 150.

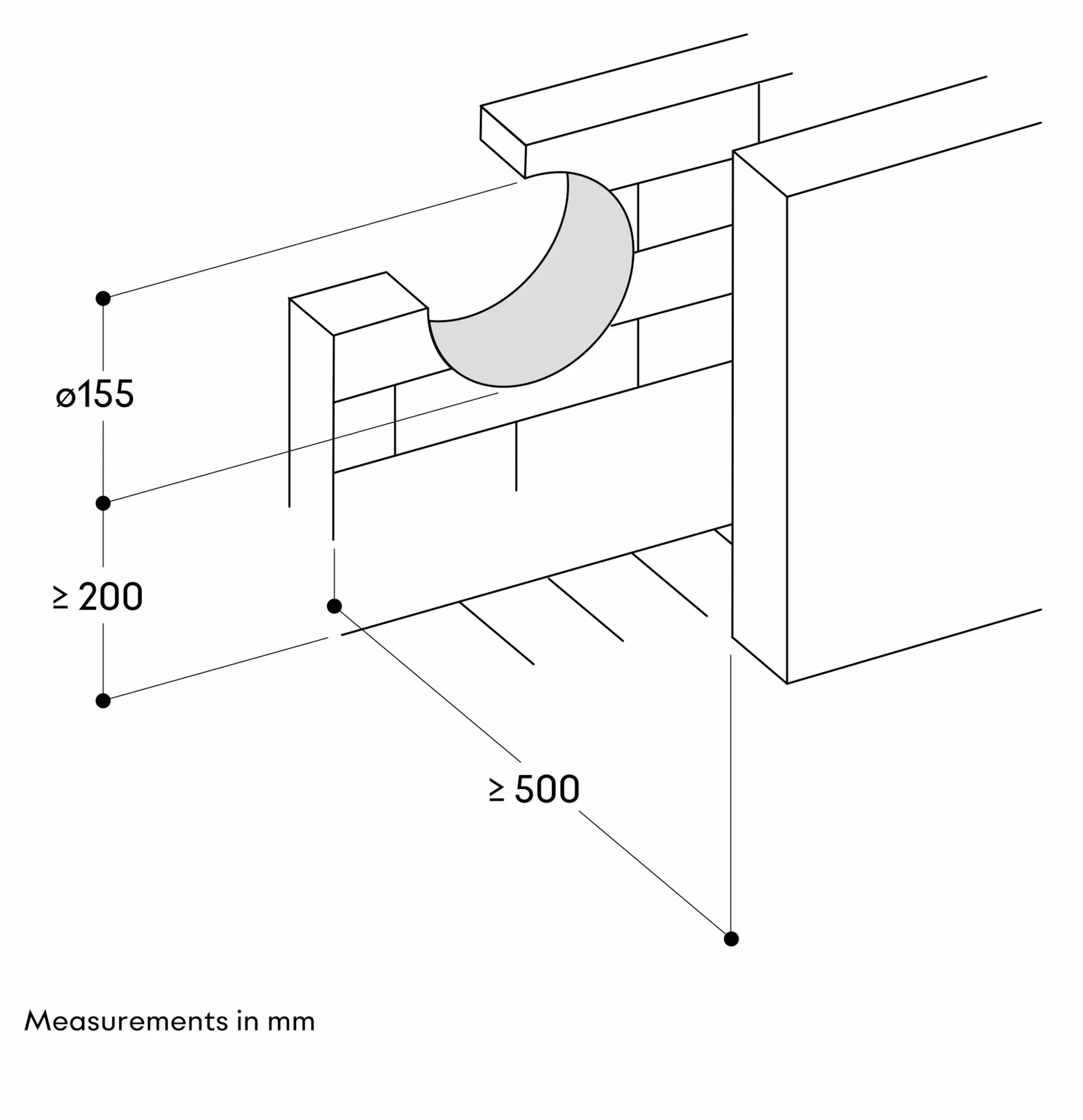

Wall breakthrough ΓΈ 155 mm.
